GeoTextile Separation Layer

GeoTextile Separation Layer
GeoTextile Separation Layer
Product Code : 06
Brand Name : JEEVAN PRODUCTS
Product Description

Recommending Geotextile Separation Layer

HOW GEO TEXTILES WORK

  • Geo textiles provide a number of significant purposes in all kinds of landfill functions: they are utilized in the places of highway, railway, dyke, and water project structure, tunnel for its strengthening, filtration, isolation and the drainage process.
  • It has a protective layer to avoid or put a stop to the geo membrane liner damage
  • It also has a Permeable separation layer to protect and safe guard the layers in landfill plan
  • It has a Drainage filter to smooth the progress of the flow through drainage systems and the geo nets
  • The Filtration layer helps prevent clay or soil invasion
  • The Landfill daily covers to present overnight surface confinement

PROTECTIVE LAYER

  • Geo membranes put a stop to contamination of soil and groundwater by leach ate leakage. On the other hand, they are only able to carry out this function if they are consistently protected in opposition to damage at some stage in installation and landfill operation.
  • As a defensive layer, Geo textile can be utilized separately in layers or in amalgamation with other materials.

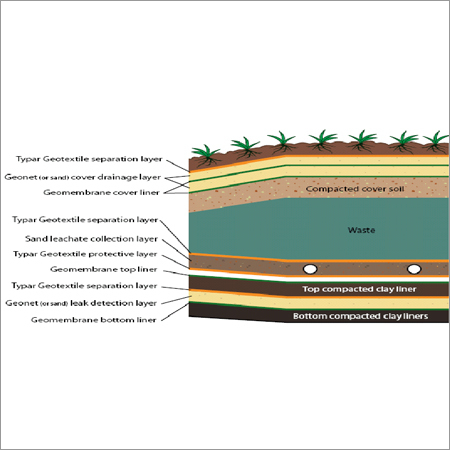

SEPARATION LAYER

  • Landfill designs are made up of many layers that produce a very robust and resilient system.
  • Using geo textiles to split these layers of manufacturing materials makes sure long term sturdiness of the design.
  • The process of intermixing drainage materials with soil is to a great extent accelerated by the existence of water, which creates most failures.
  • Geo textiles support and stabilize by offering a permeable separation layer amid the drainage materials, aggregate base and sub grade.

FILTRATION LAYER

  • Unlike most other geo textiles are obtainable in diverse styles having a variety of opening sizes.
  • This permits the designer to choose the suitable filter opening size for precise soil conditions.

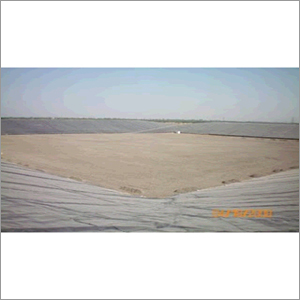

LANDFILL DAILY COVER

  • A landfill daily cover facilitates control and avoids disease, fire, odour, blowing litter and also scavenging in the landfills. It is also anticipated to manage dust, recover general site aesthetics and perform as a dampness barrier to bound surplus precipitation from entering waste.
  • Soil is most frequently used as a daily cover, but it may be in small supply and costly to transport. It eats landfill space (up to a 6 inch layer over the working face almost everyday) that could be utilized for waste disposal. In addition, wet weather circumstances can make matters worse for the usage of soil.
  • Geo textile is a perfect reusable daily cover material. The ease of handling premits Geo textile to be rapidly installed and eliminated on a daily basis (Even in cold, wet weather), thus consuming no landfill space. Its even surface makes it slip easily over compressed refuse, and its firm fibre construction sheds surplus precipitation. The Geo textile can be utilized over and over again.



1. 285 gsm, 2. 285 or 400 gsm, 3. 800 gsm, 4. 1200 gsm


Tests/properties

UNIT

ASTM METHOD

PPN 285

PPN 400

PPN 800

PPN 1200

Mass per unit area

g/m2

D-5261

285

400

800

1200

Thickness

mm

D-5199

2.5

3

5

9

Tensile strength

KN/m

D-4595

12

20

45

59

Elongation @ break

%

D-4595

50-75

50-75

50-75

50-75

Grab strength

N

D-4632

700

1220

2800

4000

Cbr punture

N

D-4261

1850

2800

4500

13000

Tear strength

N

D-4533

250

250

800

1000

Hydraulic properties







Permebility

LT/M2/SEC

D -4491

95

64

15

19

Pore size

MICRONS

D -4751

75

75

75

75

Standard roll dimensions







Width

MTR


2 / 6

2 / 6

2 / 6

2 / 6

Roll length

MTR


100

70

50

25


STANDARD PRODUCT RANGE OF "JP" PRODUCTS RECOMMENDING FOR GEOTEXTILE SEPARATION LAYER

The information is presented as a true and accurate representation of the attributes of the products to the best of our knowledge, no expressed or implied warranties are made and JEEVAN PRODUCTS assumes no responsibility or liability with regard to the use of this information. The right to make periodic revisions of the specifications without prior notice is reserved.
